Standard Engineering Technology manufactures horizontal glass-lined storage tanks for the safe storage and handling of highly corrosive media.

Designed to provide corrosion and contamination protection, the glass-lined surface creates an inert barrier between the stored media and the underlying equipment, helping to maintain product purity and prevent contamination.

Horizontal storage tanks are available in capacities from 1,000 to 40,000 litres, with a range of glass-lining and operating options available to suit specific process requirements.

Télécharger la brochure
Demande de renseignements

Spécifications techniques

  • Capacities from 1,000 to 40,000 litres
  • Standard temperature range from -28.8°C to 220°C
  • Low-temperature applications available
  • Options available for organic requirements
  • Multiple glass-lining options to suit customer requirements
  • Glass options include Standark Blue, Stansky Blue and Stansnow White
  • Custom-built solutions available for specific process requirements
  • Applicable standards: DIN 28018 & DIN 28019

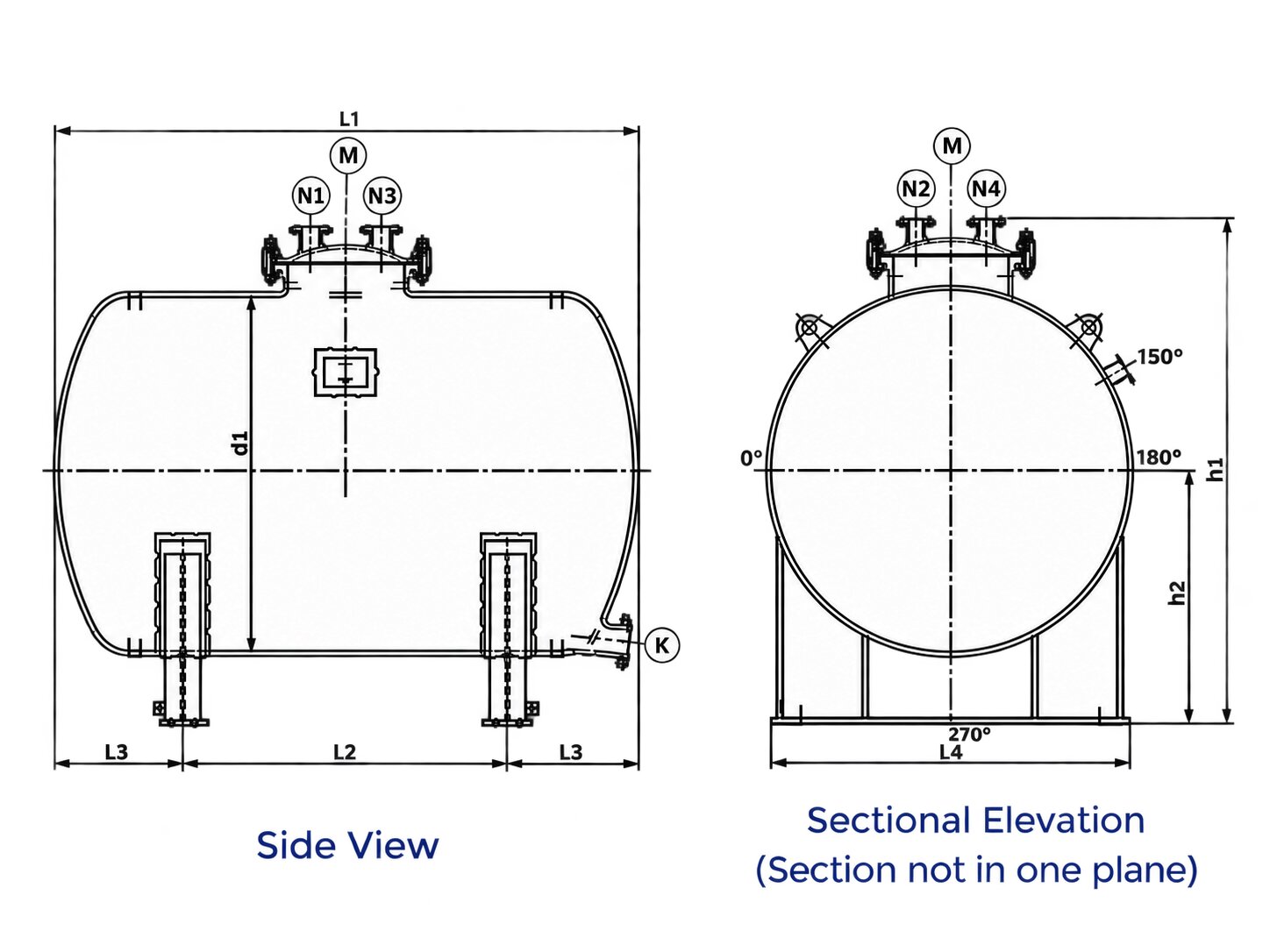

  • Dimensions

    Horizontal Storage Tanks

    All dimensions are in mm and volumes are in litres.

    Capacity in
    Litres
    Vessel Diameter
    ØD d1
    Vessel Length
    Dish O.S to O.S L1
    Distance Between
    Saddles L2
    L3 Saddle Width
    L4
    Jacket
    OD
    h1 h2 M N1 N2 N3 N4 K
    (Outlet)
    1000 1000 1800 1000 400 950 1100 1587 790 DN500 DN80 DN50 DN80 DN50 DN100
    1600 1000 2500 1300 600 950 1100 1587 800 DN500 DN80 DN50 DN80 DN50 DN100
    2000 1200 2330 1400 465 1150 1300 1686 800 DN500 DN80 DN50 DN80 DN50 DN100
    2500 1200 2800 1400 700 1150 1300 1686 800 DN500 DN80 DN50 DN80 DN50 DN100
    3000 1400 2500 1400 550 1350 1500 2012 1020 DN500 DN80 DN50 DN80 DN50 DN100
    4000 1600 2525 1400 562 1545 1700 2204 1116 DN500 DN80 DN50 DN80 DN50 DN100
    5000 1800 2870 1400 735 1660 1900 2341 1155 DN500 DN80 DN50 DN80 DN50 DN100
    6300 1800 3200 1400 900 1660 1900 2341 1155 DN500 DN80 DN50 DN80 DN50 DN100
    8000 2000 3330 1400 965 1880 2100 2602 1316 DN500 DN80 DN50 DN80 DN50 DN100
    10000 2000 4000 1400 1300 1880 2100 2602 1316 DN500 DN80 DN50 DN80 DN50 DN100
    12500 2200 4040 1646 1197 2050 2300 2805 1418 DN500 DN80 DN50 DN80 DN50 DN100
    16000 2200 5000 2956 1022 2050 2300 2805 1418 DN500 DN80 DN50 DN80 DN50 DN100
    20000 2400 5600 2000 1800 2185 2500 3184 1698 DN500 DN80 DN50 DN80 DN50 DN100
    25000 2800 5000 2700 1150 2730 2900 3285 1725 DN500 DN80 DN50 DN80 DN50 DN100
    32000 3000 5600 2471 1565 2730 3100 3795 2000 DN500 DN80 DN50 DN80 DN50 DN100
    40000 3600 5600 2850 1800 2900 3750 4850 2850 DN500 DN80 DN50 DN80 DN50 DN100

    Options d'approvisionnement

    Avantages

  • Glass-lined storage tanks provide a reliable storage solution for aggressive and contamination-sensitive media.
    • Complete corrosion and contamination protection
    • Inert barrier for aggressive chemicals
    • Helps maintain product purity
    • Helps prevent contamination
    • Suitable for pharmaceutical and food storage
    • Multiple capacities to suit different storage requirements
    • Various glass-lining options available
  • Application

  • Glass-lined storage tanks are designed for the storage of highly corrosive media where corrosion resistance, product purity and contamination protection are important.Suitable industries include:
    • Pharmaceuticals
    • API
    • Chimique
    • Agrochemical
    • biotechnologie
    • Life Sciences
    • Food & Beverages
  • Agitateur compatible
