Glass Lined Receivers
Glass Lined Receivers
Standard Engineering Technology manufactures glass-lined receivers for the safe handling of highly corrosive process media. Available in flanged and vertical monoblock configurations, the range combines corrosion and contamination protection with glass-lined surfaces designed to maintain product purity.
Receivers can be manufactured for a standard temperature range of -28.8°C to 220°C, with options also available for low-temperature applications and organic requirements. A range of glass-lining options can be supplied to suit specific customer requirements.
Product configurations:
- Flanged Construction Receivers
- Vertical Monoblock Receivers
Technical Specification

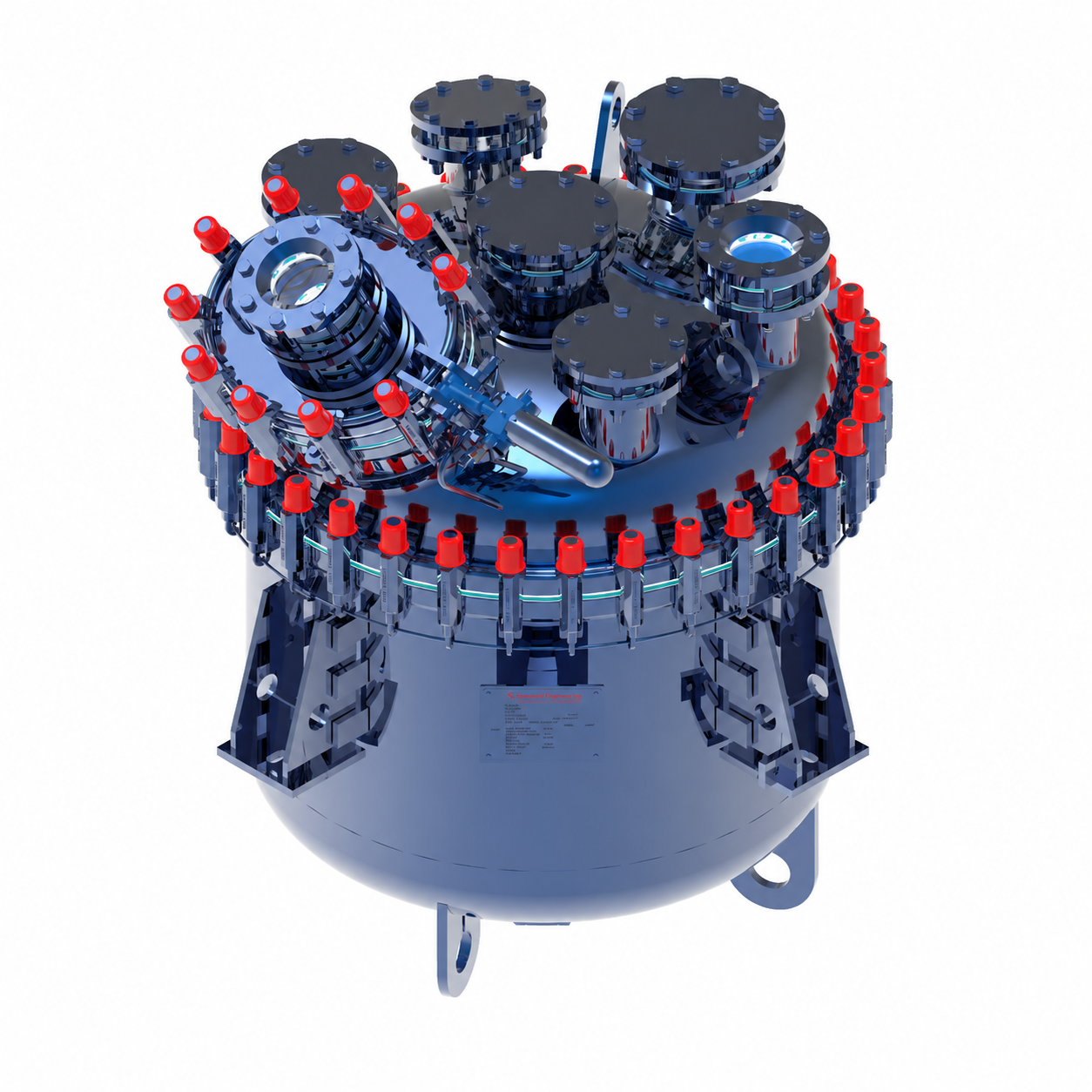

Flanged Construction Receivers
Our Flanged Construction Receivers are available in capacities from AE63 to AE630, with jacketed construction and a configurable head layout incorporating process, outlet, sight glass, light glass and vapour outlet connections.
Available capacities:
- AE63
- AE100
- AE160
- AE250
- AE500
- AE630

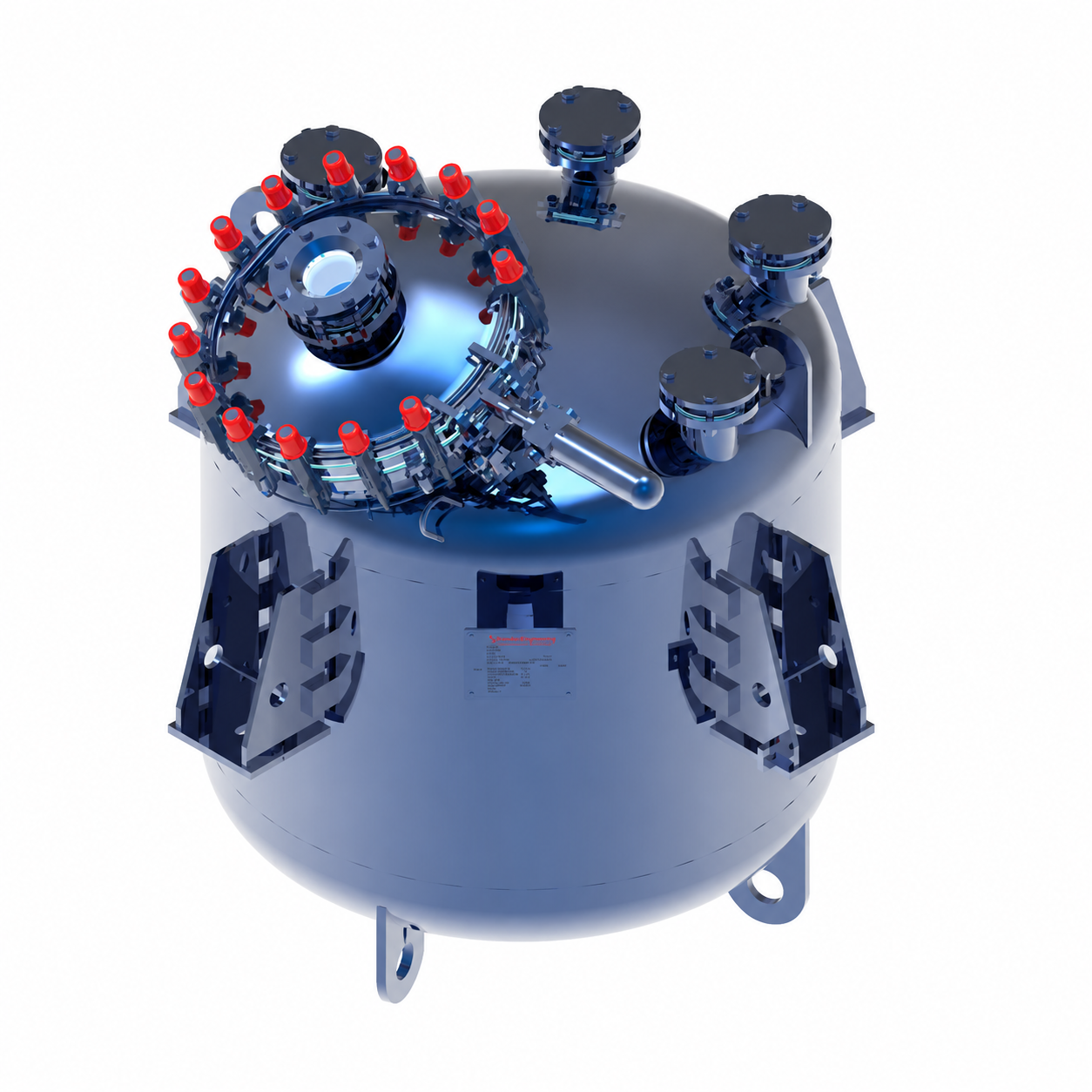

Vertical Monoblock Receivers
Our Vertical Monoblock Receivers are available in capacities from 500 to 40,000 litres. The range includes jacketed receiver configurations with dimensional and heat-transfer-area data available for each standard capacity.
Available capacities:
500 | 1,000 | 1,600 | 2,000 | 2,500 | 3,000 | 4,000 | 5,000 | 6,300 | 8,000 | 10,000 | 12,500 | 16,000 | 20,000 | 25,000 | 32,000 | 40,000 litres
Operating Options
- Standard temperature range from -28.8°C to 220°C
- Low-temperature applications available
- Options available for organic requirements
- Multiple glass-lining options to suit customer requirements
- Glass options include Standark Blue, Stansky Blue and Stansnow White
- Custom-built solutions available for specific process requirements
- Applicable standards: DIN 28018 & DIN 28019
Dimensions
Supply Options
- Flanged receiver construction
- Vertical monoblock receiver construction
- Jacketed receiver configurations
- Standard operating temperature range from -28.8°C to 220°C
- Low-temperature options
- Options for organic requirements
- Multiple glass-lining options
- Custom-built solutions for specific process requirements
Benefits
Glass-lined receivers provide a protective barrier between the process media and the underlying equipment, supporting demanding applications involving corrosive or contamination-sensitive materials.
- Corrosion and contamination protection
- Inert barrier for aggressive chemicals
- Helps maintain product purity
- Helps prevent contamination
- Suitable for pharmaceutical and food applications
- Range of capacities and receiver configurations
- Glass-lining options to suit customer requirements
Application
Glass-lined receivers are suitable for the handling of highly corrosive media where corrosion resistance, product purity and contamination protection are important.
Suitable industries include:
- Pharmaceuticals
- API
- Chemical
- Agrochemical
- Biotechnology
- Life Sciences
- Food & Beverages
