Glass Lined Agitated Nutsche Filter Dryers (ANFD)
Glass Lined Agitated Nutsche Filter Dryers (ANFD)
Standard Engineering Technology's Glass Lined Agitated Nutsche Filter Dryer (ANFD) is a multifunctional system that carries out solid-liquid separation, filtration, washing and drying within a single sealed vessel. Combining the corrosion resistance of our proprietary Stanglass lining with a robust hydraulic operating system, these units are built for the most demanding pharmaceutical, chemical, agrochemical and food processing environments.
Every ANFD is designed and manufactured to international standards, ensuring maximum performance, product purity and operator safety across batch processes.
Technical Specification
Construction
- Wetted process surfaces: Stanglass glass lining
- Vessel body: Carbon Steel or Stainless Steel with full glass lining
- Upper vessel: Cylindrical shell with dished top end, flanged bottom joint and full jacket
- Lower vessel: Flat-bed filter support for PTFE filter media and cloth, with full jacket
- Agitator: Bellow seal for improved sealing, heating and mixing at the vessel centre
- Discharge: Hydraulically operated discharge valve and lower part opening
Design Conditions
- Design pressure: Full Vacuum (FV) to 4.5 kg/cm² (g)
- Design temperature: Up to 200°C
- Vacuum operation: Yes, for faster drying
- Heating and cooling: Upper and lower jacket connected to external heating source
- Design standards: DIN, ASME, BS, PED
- Certifications: ASME U-Stamp, ISO 9001:2015, ISO 14001:2015, ISO 27001:2022, ISO 45001:2018
How It Works
- Loading: Slurry or wet material is loaded into the vessel
- Filtration: Agitation and heating under vacuum separate solids from liquids
- Washing: The solid cake is washed with a suitable solution to remove impurities
- Drying: The agitator rotates to break up and dry the cake through heating and vacuum
- Discharge: Dried cake is discharged through the hydraulically operated valve

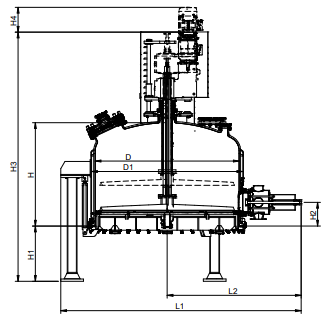

Dimensions
Dimensions
Notes:
- All dimensions are in MM and volume is in liters
Nozzle Orientation
Notes:
- All dimensions are in MM, Nozzle sizes are in NB
Supply Options
- Standark Blue
- Stansky Blue
- Stansnow White
Optional Features
- Flameproof motor
- Mechanical seal
- ATEX compliance
- PED and CE certification
- Custom nozzle configuration
Benefits
- Superior corrosion resistance: Stanglass lining withstands aggressive acids, alkalis and solvents, offering far greater chemical resistance than stainless steel alone
- Multifunctional in a single vessel: Filtration, washing and drying in one closed system reduces product handling, contamination risk and overall process time
- Faster drying: Vacuum operation lowers the boiling point of solvents and accelerates moisture removal, reducing drying cycle times significantly
- Simple hydraulic operation: Effortless opening of the lower part and discharge valve reduces operator effort and minimises downtime between batches
- Enhanced product purity: The inert Stanglass surface prevents metal ion contamination, protecting product integrity throughout pharmaceutical and API manufacturing
- Effective containment: The bellow seal agitator provides superior sealing at the vessel centre, supporting effective mixing, heating and contained processing
- Easy cleaning: Thorough internal cleaning between batches supports GMP compliance and reduces cross-contamination risk
- Static protection available: The 9500 Conductive Glass option discharges static charge virtually instantaneously, eliminating ignition risk when handling flammable solvents and powders
Application
- Pharmaceuticals and API manufacturing
- Chemical processing
- Agrochemicals
- Biotechnology and Life Sciences
- Food and Beverage
- Filtration and washing of pharmaceutical intermediates and API batches
- Solvent recovery and drying of fine chemical products
- Processing of corrosive, toxic or high-purity materials requiring full containment
- Multi-step batch processes combining filtration, washing and drying in a single vessel
- Processes involving flammable solvents where static discharge prevention is a requirement
Compatible Agitator
No items found.
Accessories
No items found.
